 Laser Cut Tube & Sheet Components

We provide advanced CNC laser cutting solutions for both sheet metal and tubular components, delivering high precision, clean edges, and consistent quality. Equipped with modern fiber laser cutting machines, we are capable of handling complex geometries, high-volume production, and custom fabrication requirements.

Our laser cutting process ensures minimal material wastage, faster turnaround times, and components that are ready for fabrication or assembly.


Key Capabilities

Laser cutting for sheets & hollow sections

High-accuracy cutting for flat sheets and tubular profiles.

Complex profiles and custom designs

Supports intricate designs with consistent precision.

High repeatability & accuracy

Uniform quality maintained across repeated production runs.

Ready-for-assembly components

Components delivered clean-cut and assembly-ready.

Applications

Automotive parts

Laser-cut components for automotive structures and assemblies.

Furniture frames

Precision-cut parts for metal furniture and frames.

Industrial assemblies

Accurate components for fabricated industrial systems.

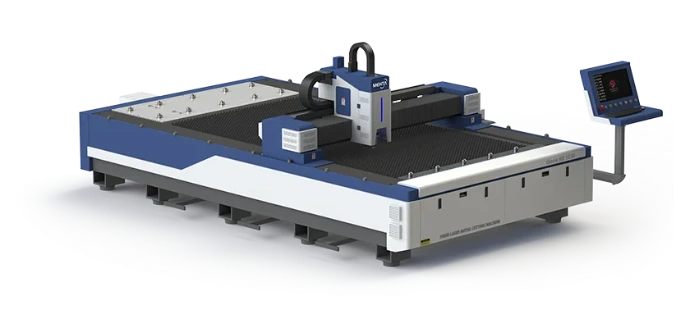

Sheet Laser Cutting Machine
Gloria HX 2065

  • Make: Mehta Laser (Made in India)
  • Machine Type: Fiber Laser Cutting
  • Working Area: ~1500 × 3000 mm
  • Laser Power: 1.5 kW – 3 kW
  • Materials: Mild Steel, Stainless Steel, Aluminum
  • Position Accuracy: ±0.04 mm
  • Minimum Line Width: ~0.12 mm
  • Cooling System: Water Cooling
  • Drive System: CNC with AC Servo Motors
  • Mild Steel (MS): up to 20–25 mm (depending on kW)
  • Stainless Steel (SS): up to 12–16 mm
  • Aluminum: up to 8–10 mm
  • High-speed fiber laser cutting for sheet metal
  • Consistent accuracy for batch and custom jobs
  • Clean edge quality with minimal finishing required
  • Stable CNC control for reliable performance
  • Suitable for MS, SS, and Aluminum processing
  • Efficient operation with low maintenance requirements

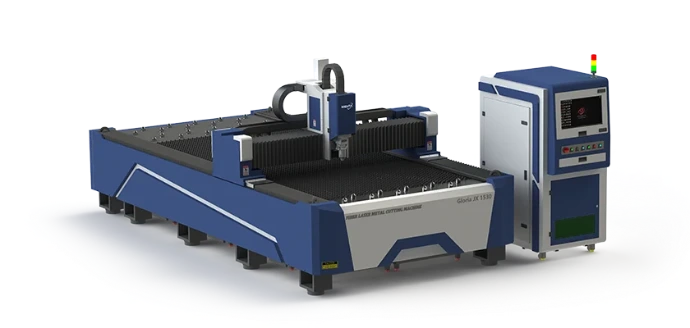

Sheet Laser Cutting Machine  GLORIA HX 1530

  • Make: Mehta Laser (Made in India)
  • Working Area: 1500 × 3000 mm (5 ft × 10 ft)
  • Laser Power: 1.5 kW / 2 kW / 3 kW
  • Laser Type: Fiber Laser (IPG / Raycus)
  • Max Cutting Speed: Up to 40 m/min
  • Max Travel Speed: Up to 70 m/min
  • Position Accuracy: ±0.04 mm
  • Minimum Line Width: < 0.12 mm
  • Cooling System: Water Cooling
  • Drive System: AC Servo Motors
  • Mild Steel (MS): up to 20–25 mm (depending on kW)
  • Stainless Steel (SS): up to 12–16 mm
  • Aluminum: up to 8–10 mm
  • High-speed cutting with excellent precision
  • Large working area (1500 × 3000 mm) for bigger sheets
  • Smooth and burr-free cutting quality
  • High repeatability for mass production
  • Energy-efficient fiber laser system
  • Stable structure for long-term accuracy

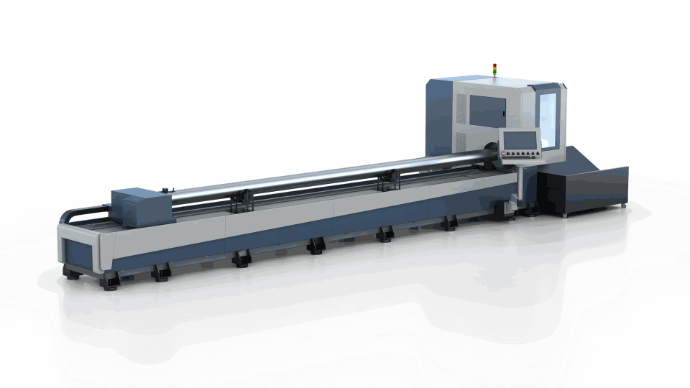

Tube Laser Cutting Machine  GLORIA TX L6

  • Make: Mehta Laser (Made in India)
  • Tube Length Capacity: Up to 6 meters
  • Laser Power: Up to 6 kW
  • Laser Type: Fiber Laser (IPG / Raycus)
  • Position Accuracy: ±0.04 mm
  • Minimum Line Width: < 0.12 mm
  • Tube Diameter Range: ~20 mm to 200 mm
  • Cutting Speed: Up to 40 m/min
  • Cooling System: Water Cooling
  • Drive System: AC Servo Motors
  • Round Tubes: 20 mm to 200 mm diameter
  • Square / Rectangular Tubes: up to 150 × 150 mm
  • Wall Thickness: up to 8–10 mm
  • Dedicated tube cutting for pipes and hollow sections
  • Supports round, square, and rectangular profiles
  • High-precision contour and slot cutting
  • Capability to process long tubes (up to 6 meters)
  • High repeatability for production runs
  • Reduces manual cutting and improves productivity
